Aluminum Tank Industries split transfer tank is DOT approved for gasoline, kerosene, methanol, diesel, and aviation fuel. Choose a rectangular, L shaped or tank toolbox combo design.

ATI split transfer tanks are available with the following options:

Split Rectangular Transfer Tank: 72 or 110 gallon sizes
L Shaped Transfer Tank: 85 or 95 gallon sizes
Split Tank Toolbox Combo: 92 gallon size

The split tanks are designed for transporting and refueling two separated liquids legally on your flat bed or in the bed of your pickup truck.

The two 2 inch bungs allow for reversing the fuel fill cap and fuel transfer pump to the side you prefer best.

Note: Standard aluminum transfer tanks are only designed to hold fuel pumps up to 15 gpm or 30 pounds of weight. Heavier fuel pumps require a heavy duty aluminum tank. Call or contact us if you need a heavy duty split fuel tank.

Split Tank Specs:

Split Rectangle Transfer Tank

72 gallon (36/36 gal) - 57"L x 18"W x 18"H; 83 pounds
110 gallon (55/55 gal) - 48.5"L x 24"W x 24"H; 116 pounds

*The 110 gallon size can fit short bed trucks.

Split L Shaped Transfer Tank

85 Gallon (42/42 gal) - 57"L x 30"W x 24"H; 112 pounds
95 Gallon (47/47 gal) - 48.5"L x 33"W x 26"H; 114 pounds

*The 95 gallon size can fit short bed trucks.

Split Tank Toolbox Transfer Tank

92 gallon (46/46 gal) - 48.5"L x 33"W x 26"H; 163 pounds

*The 92 gallon size can fit short bed trucks.

Split Tank Pictures:

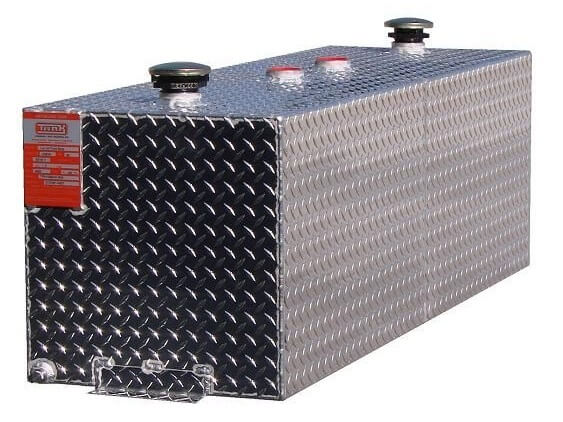

TTR72S Split Rectangular Tank

ATI Split Rectangle Refueling Transfer Tank

TTR72S: 72 gallon (36/36 gal) - 57"L x 18"W x 18"H

TTR110S Split Rectangular Tank

TTR110S: 110 gallon (55/55 gal) - 48.5"L x 24"W x 24"H / fits short beds

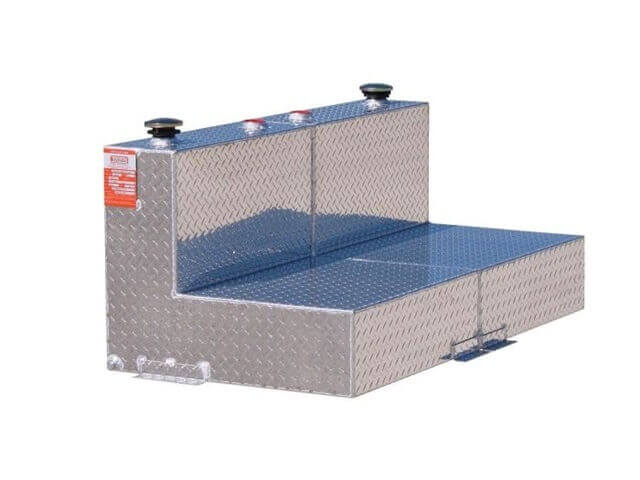

TTL85S Split L Tank

ATI Split L-Shape Refueling Transfer Tank

TTL85S: 85 gallon (42/42 gal) - 57"L x 30"W x 24"H

TTL95S Split L Tank

TTL95S: 95 gallon (47/47 gal) - 48.5"L x 33"W x 26"H / fits short beds

TTL95SCB Split Tank Toolbox Combo

ATI L-Shape Refueling Transfer Tank Toolbox Combo

TTL95SCB: 92 gallon (46/46 gal) - 48.5"L x 33"W x 26"H / fits short beds

Split Tank Features:

All ATI refueling tanks come standard with the following:

Special Permit issued by the US Department of Transportation.
Legal for gas, diesel, methanol, kerosene, aviation fuel, and other liquids.
Commercial grade lockable vent / prevent filler cap.
Fully baffled to reduce movement of contents.
Two 2 inch NPT reinforced bungs for superior strength.
A 3/8″npt drain plug,
Hold down brackets.
Pressure and leak detection test.
Clean and free of debris inside and outside of the tank.
1 year limited warranty.
a vent/prevent cap,
Fully welded baffles to reduce slosh and add strength.
Designed for use with transfer pumps up to 30 pounds.

These tanks are constructed from rugged diamond plate aluminum and are all available with a black or white powder coated finish.

Aluminum Tank Industries has been granted a special permit from the U.S. Department of Transportation for the legal manufacture, mark and selling of legal aluminum refueling transfer tanks. These tanks can be used for commercial and state applications.
