Newberry 115V Fuel Transfer Pump Package

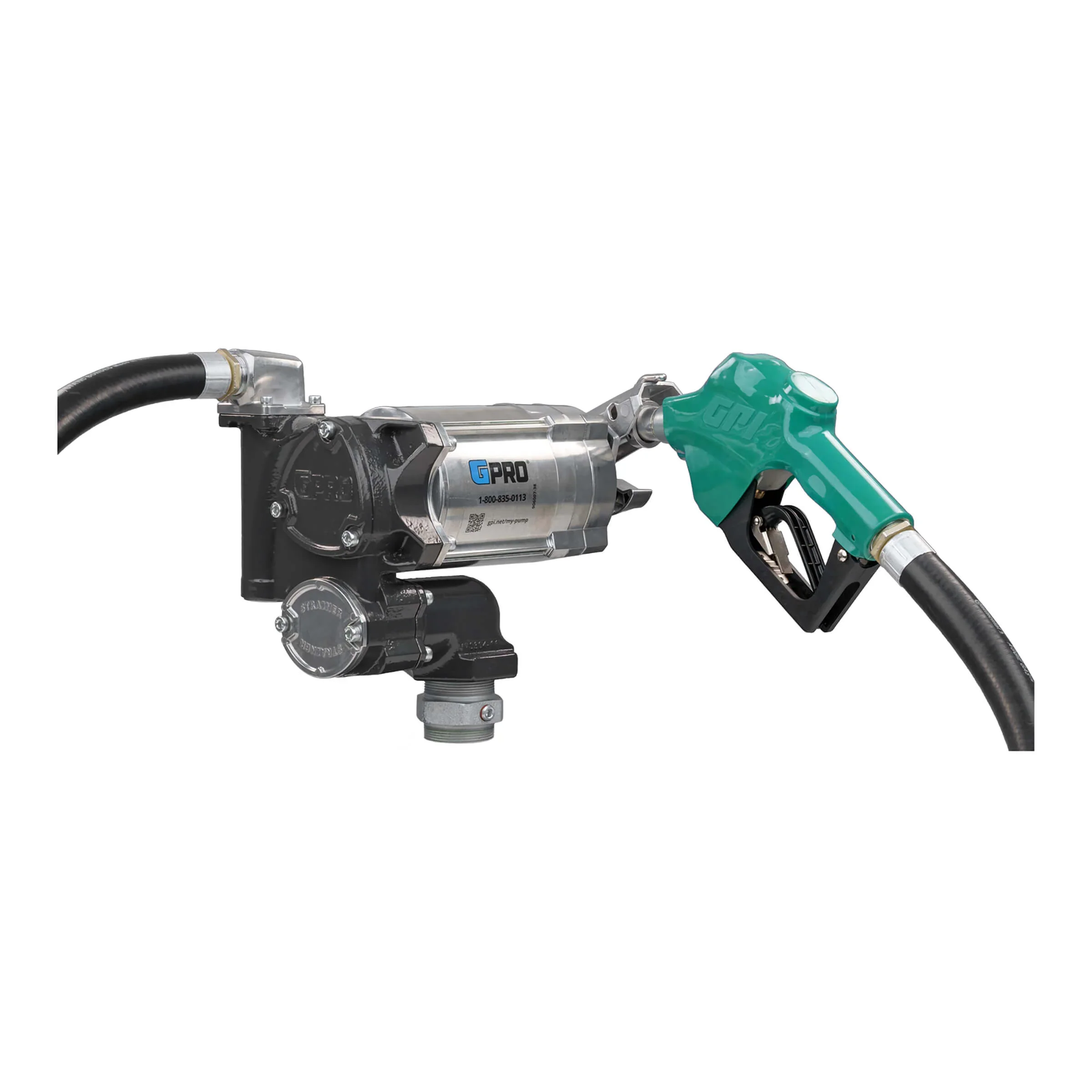

The GPRO PRO20 115 volt professional-grade fuel transfer pump is the pump of choice for agricultural and construction applications with low viscosity petroleum fuels such as gasoline, diesel fuel, and kerosene delivering flow rates up to 20 GPM (76 L/min).

The GPI PRO20 heavy duty transfer pump/meter combo uses a rotary vane design and is made from durable cast iron with a 115 V(ac) motor pump that delivers flow rates up to 20 GPM (76 L/min).

It features a weight-centering inlet base that reduces stress on the tank bung and provides convenient strainer access, an automatic diesel or unleaded gas nozzle for ease of use, an 18 ft. (5.5 m), and a lockable nozzle holder to deter theft.

The 115 Volt GPRO 115V Package includes:

• 18 foot, 1 inch hose.
• Automatic Diesel Nozzle or Automatic Unleaded Nozzle.
• 1 inch Micron Filter with base assembled to Tank.
• Transfer pump comes fully assembled with your fuel tank.

*The 115 Volt GPRO Fuel Pump only option only includes the GPI 20 GPM fuel pump with diesel or unleaded nozzle and ships unassembled to the tank. No filter is included when purchasing the fuel pump by itself.

Specifications:

• Nozzle: 1 in. FNPT Inlet, Automatic Shut-off, Diesel
• Dispensing Hose: 18ft. x 1 in.
• Input: 115V
• Motor HP:  1/3
• Duty Cycle: 30 min on/30 min off
• Inlet/Outlet: 1 in. FNPT
• Housing: Powder coated cast iron
• Warranty: 5-year pump and meter warranty

Features & Benefits

• Center base inlet with check valve.
• Vacuum breaker ready.
• Extended duty cycle exceeds industry standards.
• Thermally protected motor.
• Field replaceable switch and vanes.
