RC Industries Top Mount Drop Down Tool Box M Series

RC Industries top mount truck tool boxes with drop down doors are available in aluminum, steel, or steel with stainless steel doors.

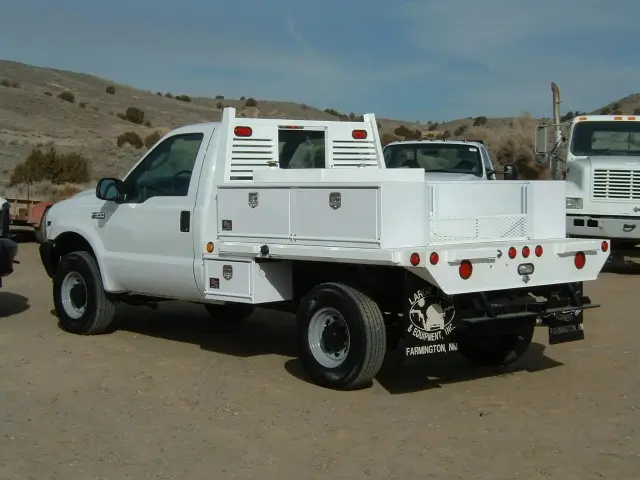

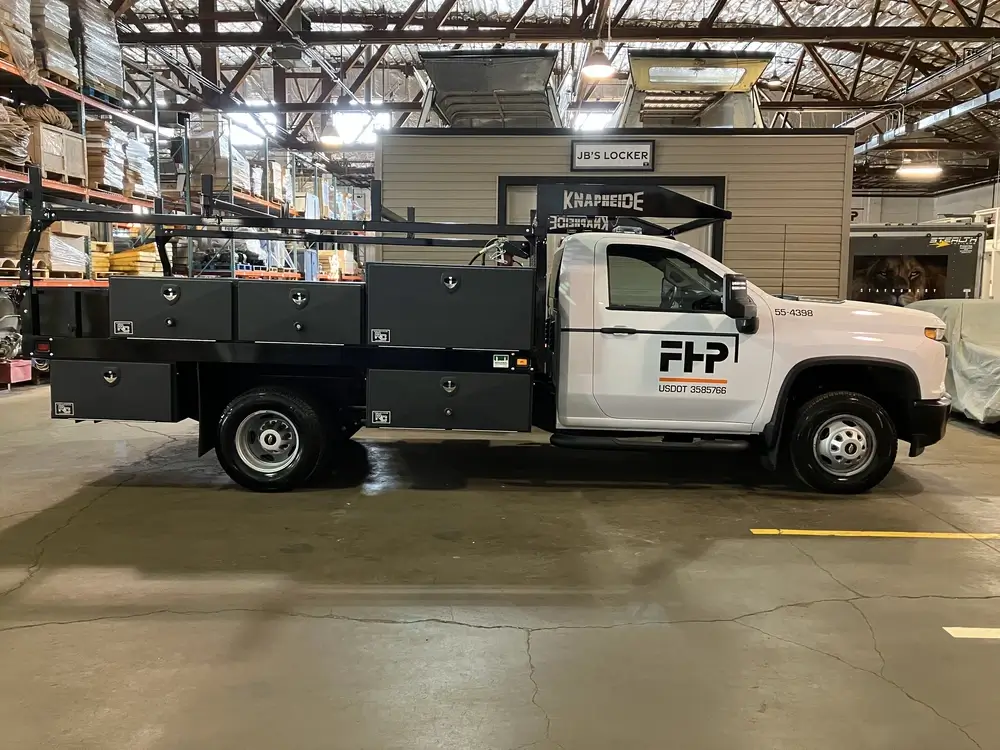

These tool boxes are designed to mount on the topside of a flatbed, service body truck, or trailer.

RC Industries Steel Top Mount Swing Up Tool Box Features:

• Designed with 12 gauge Steel or .125 inch aluminum diamond plate.
• Steel Boxes available with matte black finish.
• Pan formed drop down door.
• Stainless steel "L" style hinge.
• Automotive bulb seal.
• Heavy duty retainer chains.
• Anchor compression latch with cylinder lock.
• Optional: Steel Boxes with Gloss Black or Gloss White powder coat.
• Optional: Aluminum Boxes with Gloss Black or Gloss White powder coat.

RC Industries Steel Top Mount Drop Down Box Sizes & Dimensions:

Aluminum - Diamond Plate / Optional Gloss Black or Gloss White

• 72"L x 13"W x 16"H: 78 pounds / double door
• 84"L x 13"W x 16"H: 87 pounds / double door
• 90"L x 13"W x 16"H: 92 pounds / double door
• 96"L x 13"W x 16"H: 98 pounds / double door
• 72"L x 16"W x 18"H: 102 pounds / double door
• 84"L x 16"W x 18"H: 113 pounds / double door
• 90"L x 16"W x 18"H: 119 pounds / double door
• 96"L x 16"W x 18"H: 125 pounds / double door
• 72"L x 16"W x 24"H: 113 pounds / double door
• 84"L x 16"W x 24"H: 126 pounds / double door
• 90"L x 16"W x 24"H: 133 pounds / double door
• 96"L x 16"W x 24"H: 138 pounds / double door

Steel - Matte Black / Optional: Gloss Black or Gloss White finish

• 48"L x 13"W x 16"H: 94 pounds / single door
• 60"L x 13"W x 16"H: 114 pounds / single door
• 72"L x 13"W x 16"H: 126 pounds / double door
• 84"L x 13"W x 16"H: 160 pounds / double door
• 90"L x 13"W x 16"H: 156 pounds / double door
• 96"L x 13"W x 16"H: 184 pounds / double door
• 72"L x 16"W x 18"H: 152 pounds / double door
• 84"L x 16"W x 18"H: 169 pounds / double door
• 90"L x 16"W x 18"H: 178 pounds / double door
• 96"L x 16"W x 18"H: 188 pounds / double door
• 72"L x 16"W x 24"H: 205 pounds / double door
• 84"L x 16"W x 24"H: 226 pounds / double door
• 90"L x 16"W x 24"H: 236 pounds / double door
• 96"L x 16"W x 24"H: 247 pounds / double door

Steel with Stainless Steel Door

• 72"L x 16"W x 18"H: 128 pounds / double door
• 84"L x 16"W x 18"H: 147 pounds / double door
• 90"L x 16"W x 18"H: 156 pounds / double door
• 96"L x 16"W x 18"H: 166 pounds / double door

Other Tool Box Options:

• For more options see other RC Industries Truck Tool Boxes or all Side Mount Tool Boxes.
